Quick Setup Guide (Legacy)

FORMULA PRO ELITE & GXL PRO

Step #1

GSI Control Center

Download GSI Control Center. Upon installation, follow the instructions based on your GSI model. The installer will download all the necessary elements you need for smooth operation of your GSI model such as drivers and LED profiles. With GSI Control Center, you will be able to set on board functions for clutch calibration, clutch bite point, dead zones and master clutch selection.

USB CONNECTION

We recommend using one of the following connection methods:

GSI Coiled Cable → Powered USB Hub → PC
GSI Coiled Cable → Active USB Repeater → PC

Step #2

Display Setup

GXL Pro owners, skip to step 4.

Make sure you have installed the screen drivers either through the GSI control center installer or installing the drivers individually.

Once the wheel is plugged in, the LEDs will illuminate in solid red. This indicates the screen and the LED lights are operational and ready for instruction from your sim data software of choice. (SimHub, JRT or Z1). We will continue with SimHub as it controls both dash and LED output.

INDENTIFY DISPLAYS

Before following the steps, be sure to identify which display is in your FPE.
You can identify which display is in your wheel by it’s reflectiveness:

GLOSSY DISPLAY
VoCore (Current)

MATTE DISPLAY
USBD480 (Legacy)

  1. Open SimHub, click ‘Devices’ in the sidebar.

  2. Click "Add device"

  3. NOTE: Unless you are part of the simOS beta, please DO NOT select any GSI wheels from the menu that opens, but select one of the following displays instead:

  4. Select your display in the "Pick a supported device" screen:
    • Generic VOCORE (New GSI Models)
    • Generic USBD480 without Touch
    • Generic USBD480 with Touch
  5. Set ‘Display refresh rate limit’ to 20 FPS (USBD480 only).

  6. Ensure ‘Flip display (180º)' is unchecked.

  7. Select your GSI Dash or your dash of choice from the ‘Displayed dashboard’ dropdown.

SimHub VoCore Settings

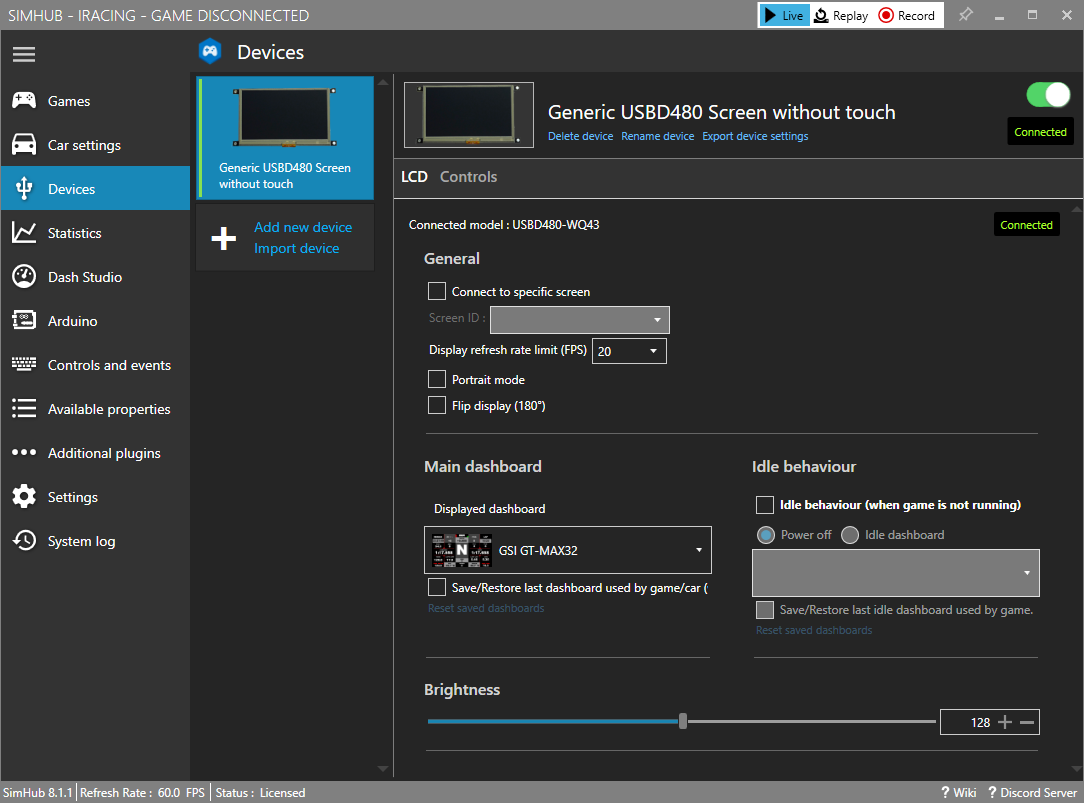

SimHub USBD480 Settings

Step #3

RGB LED Setup

  • Navigate to the Arduino section and click the “My Hardware” tab. Here make sure “Single Arduino” is selected. Your FPE wheels onboard Atmega32U4 Arduino will appear under “Detected Hardware”
  • Test LED function by navigating to the “RGB LEDS” tab. Once there click “Open data test editor” In the pop up click “game running” select a car model and slide the “RPMS” slider to test the onboard LED lights.
  • If your Arduino is not being detected, restart the app and wait 10 to 15 seconds for it to load the microcontroller. If this has no effect, restart your computer with the wheel attached and this usually solves the load failure.

SimHub Arduino Settings

IMPORTANT!

DO NOT attempt to program or upload a new Arduino sketch using SimHub to the GSI wheel. The red status LEDs on startup is indication the GSI Arduino sketch is active and operational. Any attempt to upload a new sketch will disable the wheels LEDs and will need to be sent back to GSI for reprogramming at the users cost.

Step #4

Dual Clutch Setup

With the wheel plugged in, calibrate both clutches by clicking the Calibration button in the GSI Control Center app, then pull both clutches release. Your clutches are now calibrated.

  • After calibration, click either the Dual Clutch or Gas and Brake option buttons.
  • For Dual Clutch, set the “bite point” by adjusting the bite point slider or inputting the value manually.
  • If the sensors are too sensitive, add a Min Dead Zone to clear any low range inputs coming from the clutches.

Have an issue?

Troubleshooting

For proper operation, you need to have a clean, reliable USB data throughput signal and the absence of EMI (Electrical Magnetic Interference) from other devices.

  • Connect wheel via a powered USB hub or directly to computer.
  • Avoid excessively long USB extension cables. Data degrades on longer USB extensions.
  • AMD systems with widely known poor USB performance update to AGESA bios 1.2.0.2 or higher. (check your motherboard manufacturer website)
  • Check for EMI (Electrical Magnetic Interference) and ground rig if needed.
  • Try alternate USB ports if one port is not performing to spec.
  • Check coiled cable to make sure cable housing is screwed on tight.
  • USB shares data throughput with all devices on the system. Make sure you are not overloading the USB tree.
  • Use a dedicated PCIE USB card. (We recommend NEC chipset cards)
